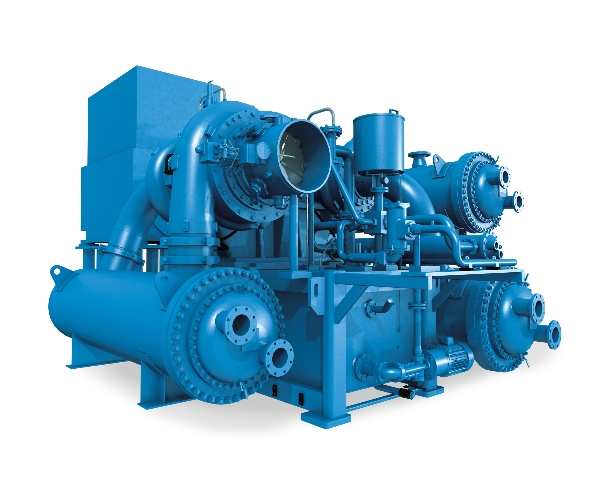

50多年來提供各產業廠用及工程用離心式空壓機,FS-Elliott機型齊全,具有17-4PH不銹鋼材質之先進後傾式設計葉輪, 高可靠精密同軸旋轉齒輪,一體成形高剛性機台及束管式水走管內冷卻器, 水平分離的軸封設計,配置自動校正高負荷、低摩擦可傾式軸承,4合1模組式先進控制器。

PAP Plus系列堅固可靠而且符合API672規範。機組可依照客戶技術和運行參數進行客製來滿足用戶各種應用需求(如在石油、天然氣、煉油、化工/石化等領域)。每台PAP Plus必須經過嚴格品質管控和技術標準審查,生產過程也是按照ISO9001:2008規範進行,機組測試則更是遵循API672和ASME功率規範來確保品質與性能。隨著級數的增加,壓縮比越低,效率越高。此系列可提供最多四級,比舊式壓縮機設計效率高出5%。

二段、三段及四段設計工作壓力3~31 kg/cm2 (40~450psig),馬力數由185kW~4475kW (250hp~6000 HP),輸出排氣量900~24500 CFM (25~695 m3/min)。

PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series
PAP PLUS Series

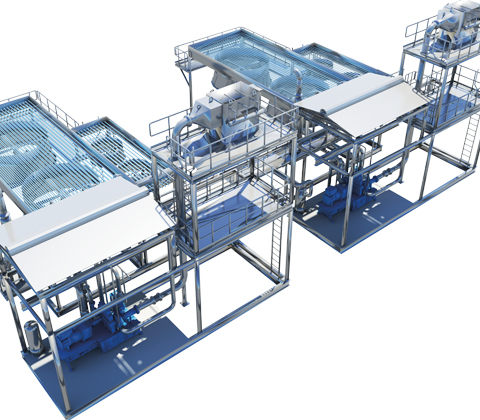

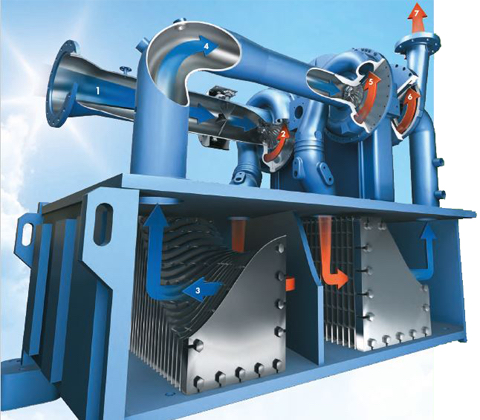

直通式中冷器管可定期清潔,而不是更換。

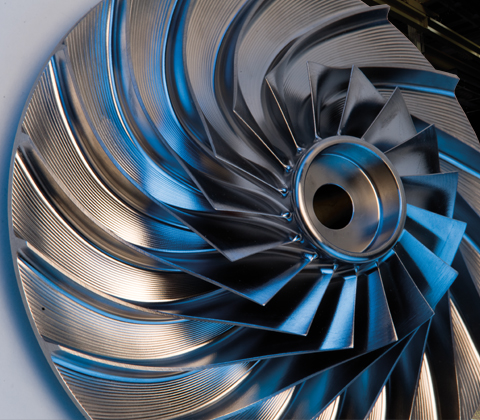

最先進的後傾葉輪設計,提供廣泛的優越的空氣動力學性能特徵。

調節式進氣導葉閥可根據工廠條件和負載變化進行調整,以節省能源。

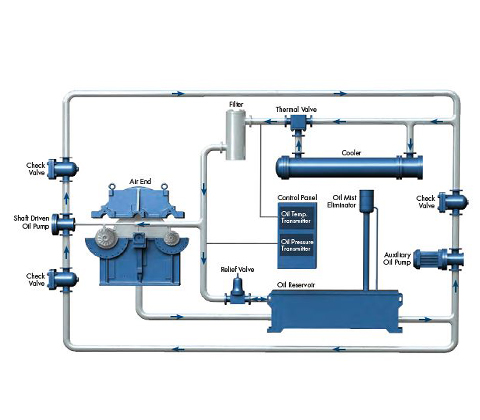

在主油泵發生故障時,全流量輔助油泵繼續正常,安全運行。

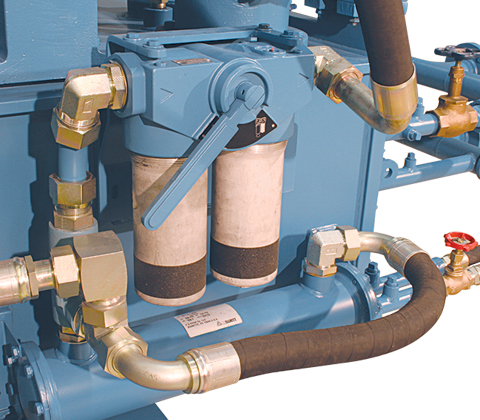

過濾器監控包可接收油和空氣過濾器的壓差狀況。

智慧型微處理器能夠執行評估和產生診斷將資訊傳送至遠程了解壓縮空氣系統的狀況。

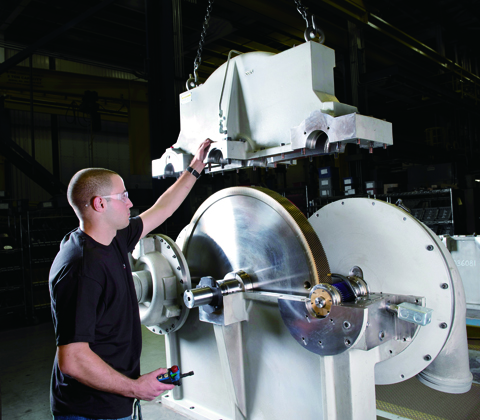

水平分割式外殼和內部組件是業內唯一真正可現場維修的齒輪箱。

ISO 8573-1 CLASS 0, 100%無油空氣可減少生產線中油污染造成的停機時間,並且現場無需冷凝水處理。

粉體輸送
紡織產業
生物發酵
玻璃製品
