HS系列渦卷式冷媒壓縮機,符合全方位的產業應用,如冷熱回收、熱泵、冷凍、冷藏、製程…等。HS系列熱水機型具重負載運行設計,能滿足最高蒸發溫度25℃熱回收應用需求。若搭配熱回收節能設計,能滿足最高85℃出水溫度。另一方面,HS系列冷藏機型可搭配冷凝機組、製冰機應用設計,達到最低蒸發溫度-40℃。

HS Series
HS Series
HS Series
HS Series

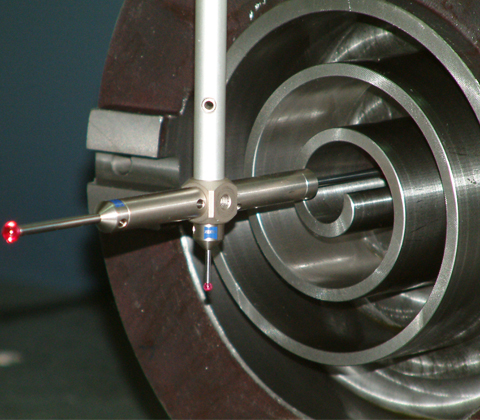

專用高壓比與專利線型設計,容積效率高達97%以上,有效提高3~5%運行能效,降低運行成本。

專利半密式結構設計,方便維護保養與維修,降低維護與重置成本。

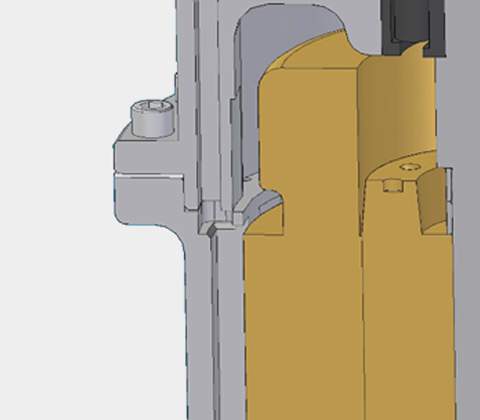

高精度定位結構設計,無須考量因焊接變形所須預留間隙,運行較全密壓縮機更低震動、低噪音。

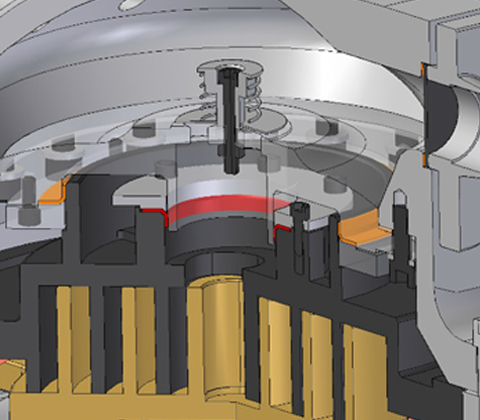

低壓損高效冷卻流道設計,有效維持馬達效率與可靠度,吸氣效率更高。

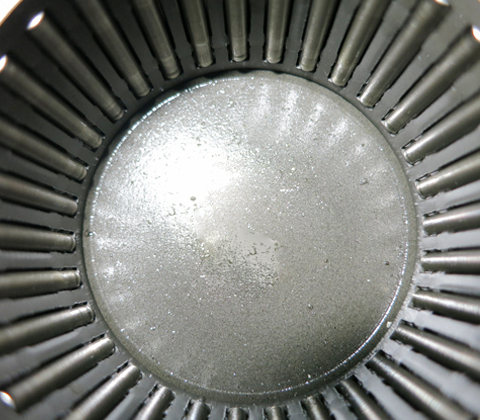

針對 高負載應用所使用高精度滾動軸承設計,有效確保熱泵與冷藏應用可靠度。

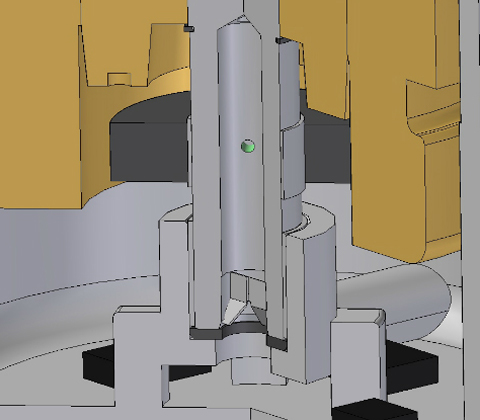

獨立式油道設計,大幅降低潤滑油與冷媒接觸,有效達成1%以下拋油量。

specNote
型號 排氣量(m³/hr) 適用冷媒
